EXT-AU313-TP
AUDIO EXTENDER KIT

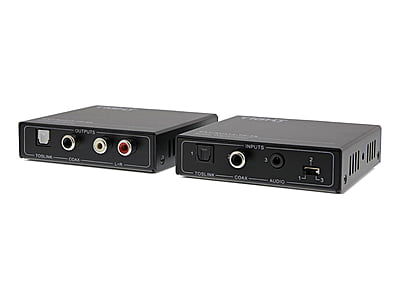

The EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.
KEY FEATURES:
• Three selectable audio inputs: Optical, Coax and Analog Stereo.
• Audio will be outputted simultaneous to the three different outputs: Optical, Coax and Analog Stereo.
• Convert audio signals from digital into analog, or analog into digital.
• Supply power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
• The transmission distance of analog stereo audio can up to 170 m, and the digital Optical/Coax audio up to 290m over an CATx cable.
Transmitter | |

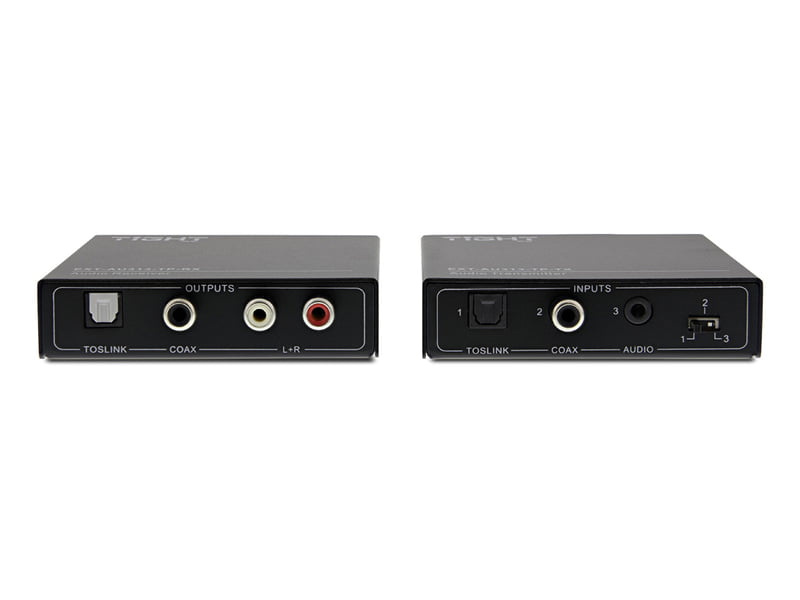

Input | (1) TOSLINK,(1) COAX,(1) AUDIO (Stereo) |
Input Connector | (1) Toslink, (1) Black RCA, (1) 3.5mm jack |

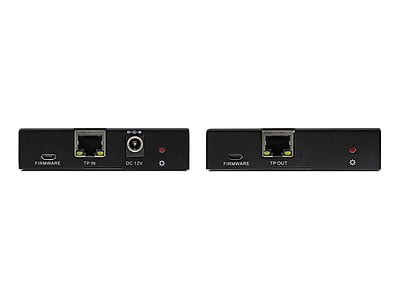

Output | (1) TP OUT |
Output Connector | (1) RJ45 |
Control | (1) FIRMWARE |
Control Connector | (1) Micro USB |
Receiver | |
Input | (1) TP IN |
Input Connector | (1) RJ45 |
Output | (1) TOSLINK,(1) COAX,(1) L+R (RCA) |
Output Connector | (1) Toslink, (1) Black RCA, (1) Red & White RCA |
Control | (1) FIRMWARE |
Control Connector | (1) Micro USB |
General | |
Input Audio Format | TOSLINK: PCM, Dolby, DTS COAX: PCM, Dolby, DTS AUDIO: Stereo |
Output Audio Format | TOSLINK: PCM, Dolby, DTS COAX: PCM, Dolby, DTS L+R: Stereo |
Sound Channel | TOSLINK: 2.0~7.1 COAX: 2.0~7.1 |
Frequency Response | All audio: 20Hz ~ 20kHz, ±3dB |
Sample Rate | TOSLINK:48k/96k/192k 16bit/18bit/24bit COAX: 48k/96k/192k 16bit/18bit/24bit |
Transmission Distance | Stereo audio: Up to 170m (CATx) TOSLINK/COAX audio: Up to 290m (CATx) |
Power Consumption | 2.5W (max) |
Operation Temperature | 0 ~ +40℃ |
Storage Temperature | -10 ~ +50℃ |
Relative Humidity | 0% ~ 90% |
External Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output:12VDC 1A |
Dimension (W*H*D) | 88mm x 21.5mm x 80mm |
Net Weight (g) | Transmitter: 110g, Receiver: 120g |
