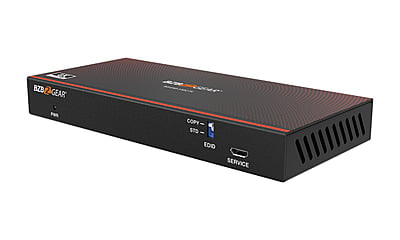

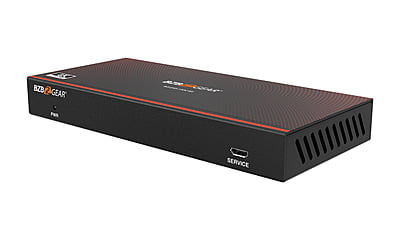

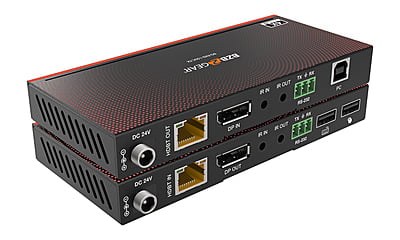

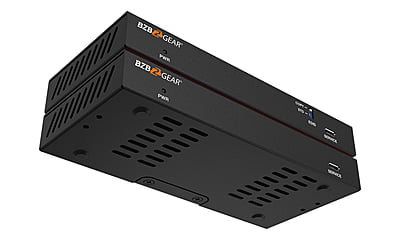

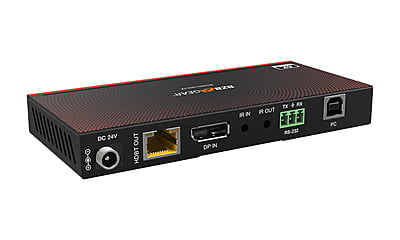

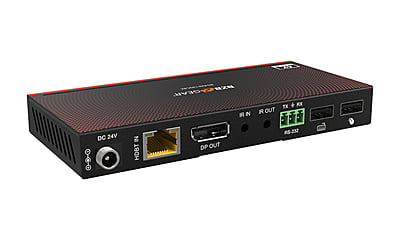

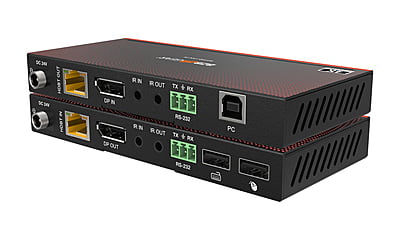

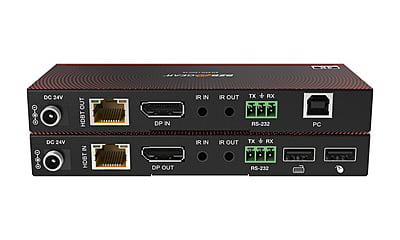

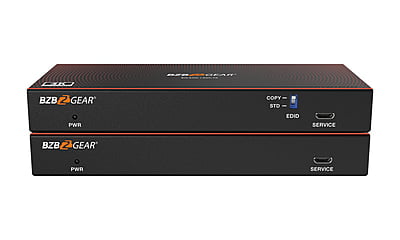

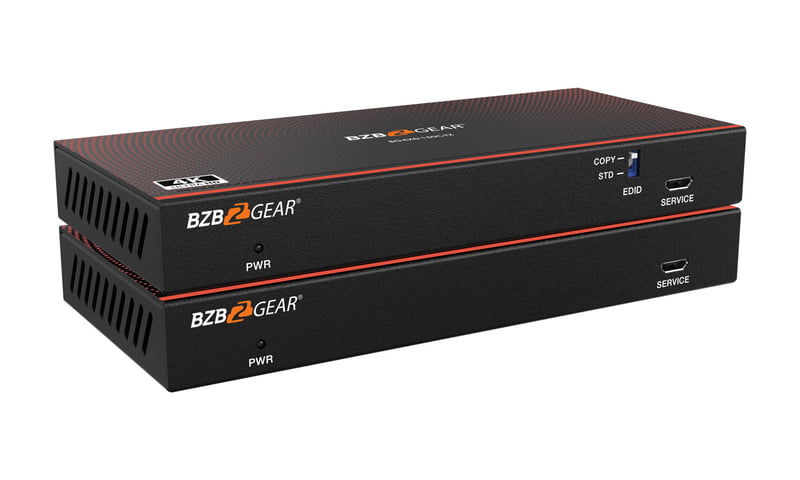

BG-EXD-150C
The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender capable of transmitting DP video, bi-directional IR, and RS-232 control signals, as well as USB KVM signals. It can transmit signals over distances of up to 328ft/100m for a 4K60 signal and 492ft/150m for a 1080P signal using a single CAT6 cable.
The BG-EXD-150C converts the DP signal into a standard HDBaseT signal, transmitting it via a LAN cable. Users can easily control the signal source device or the display device using a remote, thanks to the bi-directional IR signal pass-through feature. The extender supports video resolutions of up to 4K2K@60Hz YUV 4:4:4 and also provides a bi-directional POC function.
Furthermore, with support for DisplayPort 1.2, this extender facilitates the transmission of visually lossless 4K Ultra HD resolutions, making it ideal for striking digital signage or detailed content in medical settings. The extender is also compatible with lossless audio formats, including Dolby TrueHD and DTS-HD, enhancing video content with powerful multi-channel sound, thus elevating the viewer's experience. The USB KVM connectivity ensures full control of a DisplayPort PC from a local console, which can be kept in a secure or temperature-controlled environment, all while seamlessly delivering consistent video content to the display.
Features
- Compliant DisplayPort 1.2a and HDCP 2.2 compliant
- 4K UHD Video resolution up to 4K2K@60Hz YUV 4:4:4
- Long Range Signal transmission distance up to 328ft/100m for 4K60 signals or 492ft/150m for 1080P signals via a single CAT6 cable
- Audio Formats LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
- Intuitive Control Control a remote DisplayPort PC via keyboard and mouse with the KVM function
- Compact Design For easy and flexible installation
- 21.6Gbps video bandwidth
- Bi-directional Power Over Cable (POC), IR, RS-232, and USB KVM signal pass-through
- Advanced EDID management
- Smart compression: For visually lossless transmissions
