EAP110-Outdoor
Non-returnable
€35,54 €45,57
Tags:
EAP110-Outdoor

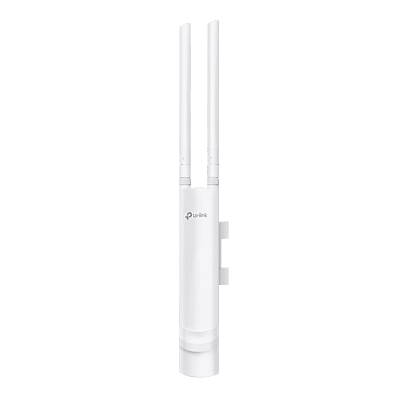

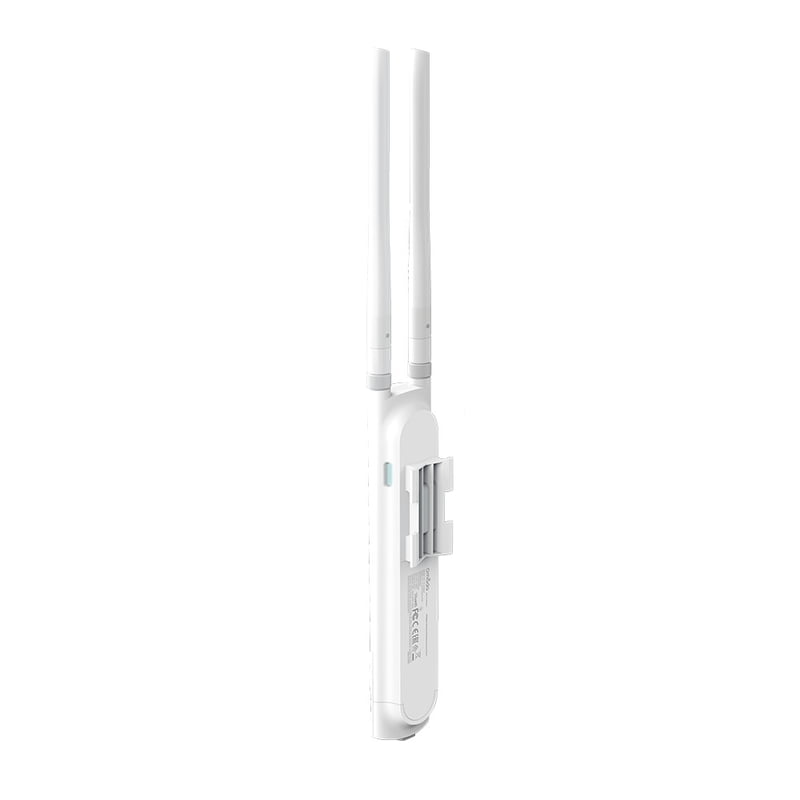

300Mbps Wireless N Outdoor Access Point
- Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO.†

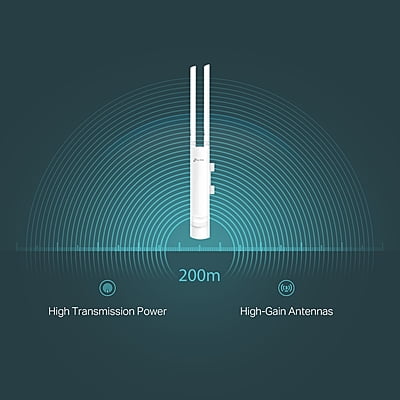

- Long-Range Coverage: Dedicated high-power amplifier and professional antennas.
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
- PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
VAT
Not Included Choose Quantity
Product Details

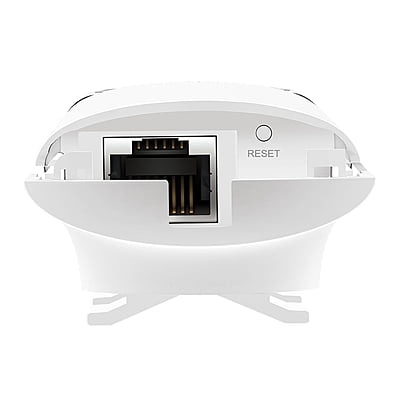

| Interface | 1× Fast Ethernet (RJ-45) Port (Support Passive PoE) |
|---|---|
| Knop | Reset |
| Uitgangsvermogen | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Energieverbruik | 3.12 W |

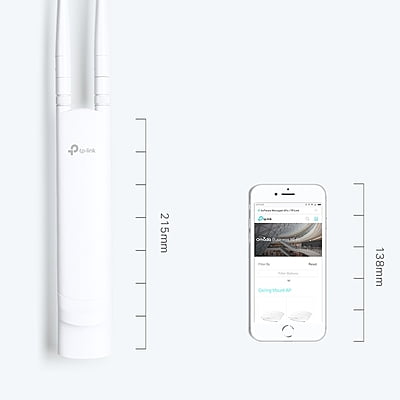

| Afmetingen ( B x D x H ) | 8.5 × 1.8 × 1.1 in (216 × 46 × 27 mm) |
| Type Antenne | 2× 3 dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |

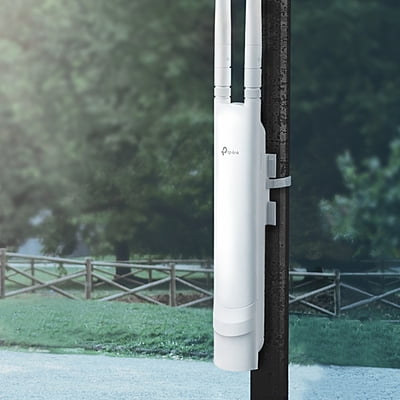

| Montage | Pole / Wall Mounting (Kits included) |
| Concurrent Clients | 100+** |
|---|---|
| Standaarden voor Draadloze Netwerken | IEEE 802.11n/g/b |
| Frequentie | 2.4 GHz |
| Overdrachtssnelheid | • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) |
| Draadloos Zendvermogen | • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm |
| Draadloze Functies | • Multiple SSIDs（Up to 8 SSIDs） • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control （Adjust Transmit Power on dBm） • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Draadloze Beveiliging | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Omada App | Yes |
|---|---|
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Notificaties | Yes |
| LED Aan/Uit Controle | Yes |
| Management MAC Toegangscontrole | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Certificatie | CE, FCC, RoHS |
|---|---|
| Pakketinhoud | • 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide |
| Systeemvereisten | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Omgeving | • Operating Temperature: -30–65 ℃ (-22–149 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
