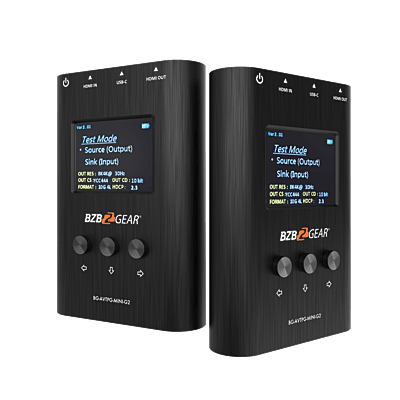

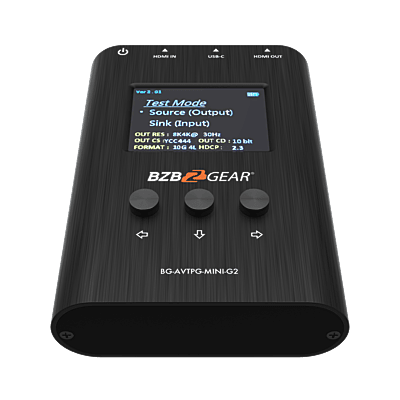

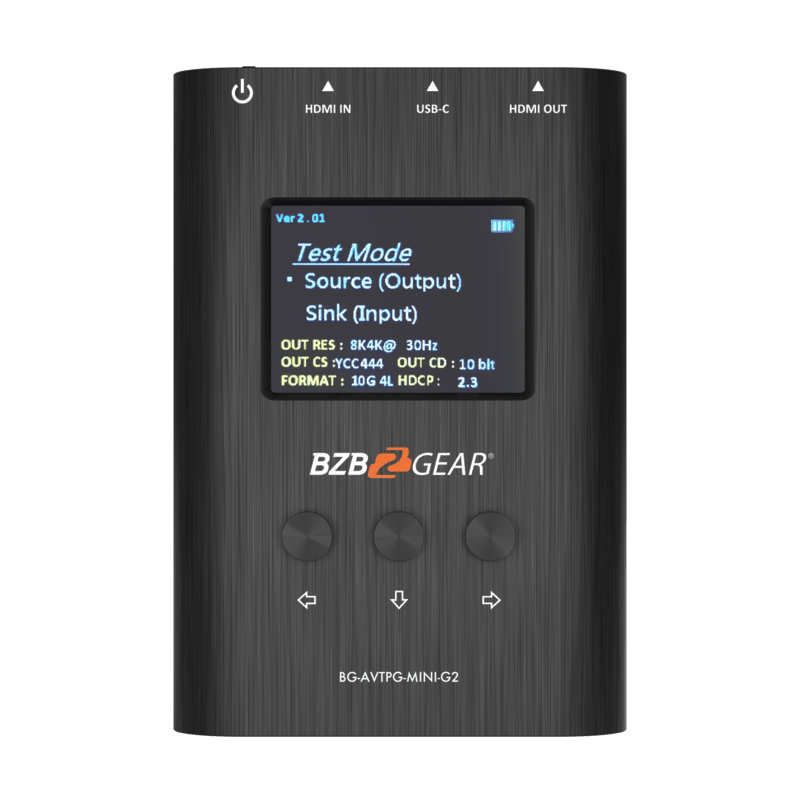

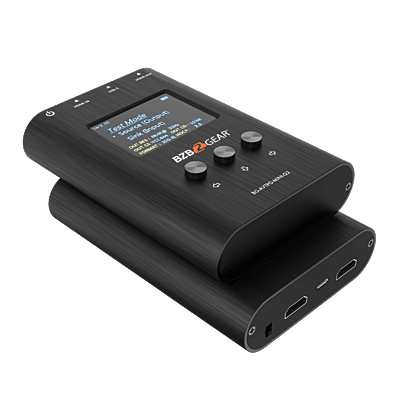

BG-AVTPG-MINI-G2
The BG-AVTPG-MINI-G2 is a compact and portable device designed for professionals working with HDMI 2.1 signals. As a versatile tool, it serves as both a signal generator and analyzer, catering to installers and integrators. It supports a wide range of HDMI signals, including high-resolution formats like 8K60 4:2:0 10bit and 8K30 4:4:4, as well as common resolutions like 4K60 and 1080P. For those running 4K at higher refresh rates, it also supports resolutions up to 4K120. The device's adjustable color depth feature enables easy assessment of display capabilities during testing.
In "Sink" mode, the BG-AVTPG-MINI-G2 functions as an HDMI signal detector, providing essential details about detected signals, such as resolution, frame rate, HDCP version, and other key HDMI characteristics. Its compatibility with HDMI 2.1 standards, adherence to HDCP 1.4 and 2.3 standards, and impressive operational range make it a reliable choice. The device's pocket-sized design and rechargeable battery, offering up to 3 hours of usage, enhance its portability for professionals on the move.
Features
- 8K Support - It supports diverse resolutions and color formats, like 8K60 4:2:0 8bits and 8K30 4:4:4, ensuring an accurate display of details and colors
- Supports 4K120 - Provides smoother gameplay, reduced input lag, better visual clarity, and high-quality broadcasting for Esports
- HDCP test capability - Validates secure content transmission
- Battery-powered portability - Facilitates convenient on-the-go testing and field calibration for optimal performance
- HDCP Protection - HDCP 1.4 & 2.3 compliant
- Future-Proof Embracing a spectrum of resolutions, from the stunningly detailed 8K60 and 4K120 to the widely used 4K80 and 1080p
- Video resolution outputs up to 8K60 10bit 4:2:0, 8K30 4:4:4, & 4K2K 120Hz
- HDR 4K2K@60 4:2:0 10bit/12bit
- Built-in 4 video patterns

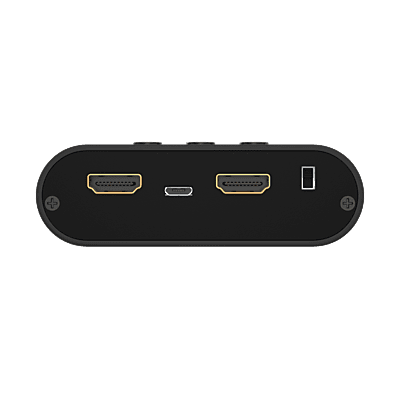

- Both HDMI input and output support up to HDMI 2.1
- Fundamental HDMI feature analysis up to 8K4K@60 4:2:0 8bit HDMI 2.1 input
- Input Video bandwidth: 40G
- Output Video bandwidth: 48G
- Hand-held pocket size
- Rechargeable battery powered for portability
- Operation time with a full charge up to 3 hours
