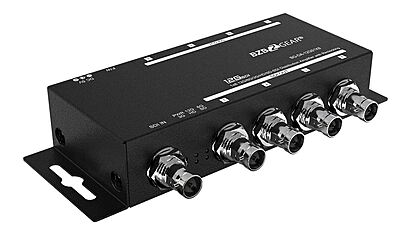

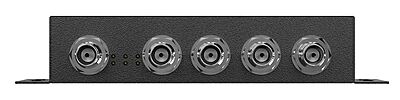

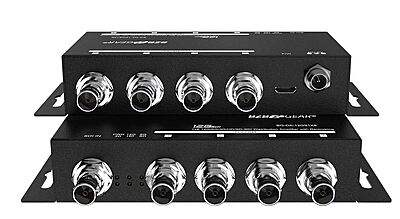

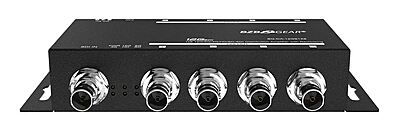

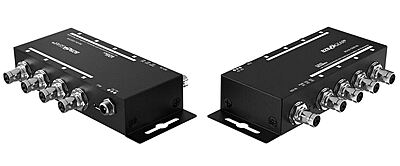

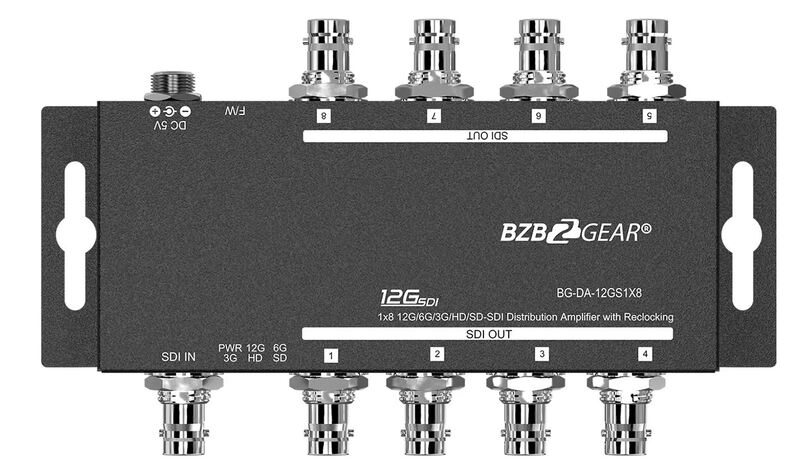

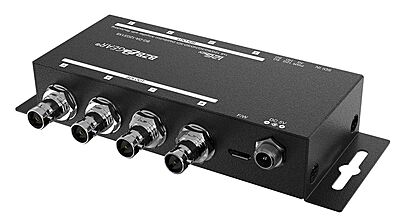

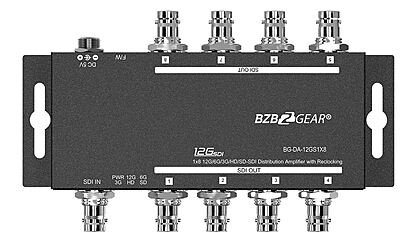

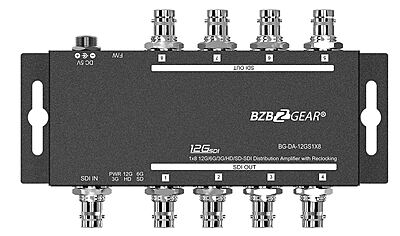

BG-DA-12GS1X8 4K UHD 12G-SDI 1x8 Splitter/Distribution Amplifier

The BG-DA-12GS1X8 is a 1x8 12G-SDI splitter and distribution amplifier. This device can split an SD, HD, 3G, 6G, or 12G-SDI video source up to eight SDI outputs simultaneously. For any situation where range, quality, consistency, and reliability are all factors, this unit is the correct choice. Whether you need to connect additional displays for video feed monitoring, distribute a 4K signal over a long distance, or daisy chain and cascade multiple units to build a large scale video distribution solution - the BG-DA-12GS1X8 will help you get the job done.

Connectivity and Features

Each output from the BG-DA-12GS1X8 is buffered independently and re-clocked eliminating signal disruption and making it possible to extend signal transmission to greater distances. With automatic input cable equalization, 12G-SDI signal can be transmitted up to 70m (230 ft), 6G up to 100m (330 ft), and up to 180m (594 ft) for 3G connections.

The device has a maximum SDI bandwidth of 11.88 Gbps to support high quality video transmission with low latency when splitting video to multiple outputs. Installers can also utilize the device’s LED indicators that show the status of signal lock and current video rate to reduce the amount of time system configuration is needed.

The device’s design is built around quality and durability. With an inter-locking power supply and SDI connectors as well as a metal housing with mounting brackets, this device is built to last while maintaining reliable video transmission.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).

Features

• 8 Outputs Split a single SDI source up to 8 different SDI displays or devices
• Buffered and re-clocked outputs Eliminate jitter and increase transmission distance
• Split and Amplify Split and extend a 4K signal up to 230ft (12G)
• LED Indicators Signal lock and video rate at a glance
• Interlocked Power Supply Ensures power stays connected
• Rugged Design Durable metal structure built to withstand years of operation

• Locking Connectors – Ensure your video cables do not accidentally come unplugged with locking SDI connectors
• Long Distance – Send a 3G-SDI signal up to 594ft
• Portable – Great for use in the field or when you need multiple displays of the same source in different locations
