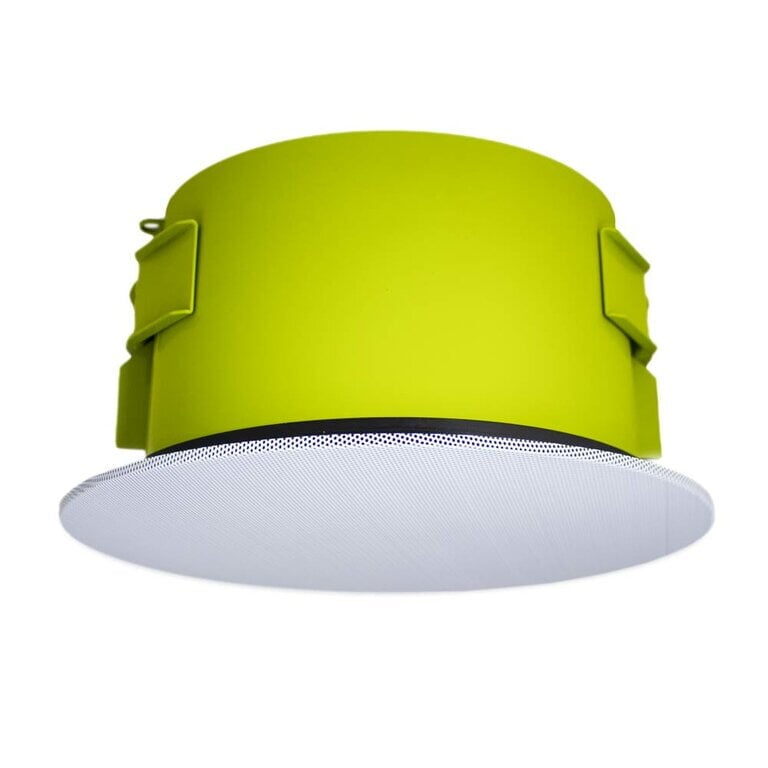

SoundTube IPD-CM62-BGM-II-WH Dante Speaker
SoundTube IPD-CM62-BGM-II IP-Addressable Speaker in White

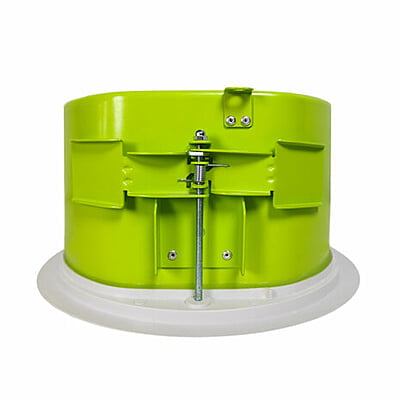

Dante®-enabled coaxial in-ceiling speaker incorporating one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to2.38 in (60.4mm). Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included. IP-Rating: IPX3.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
| Color | White |
|---|---|
| UPC | 644216226603 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Shipping Weight | 10.95 lbs / 4.97 kg |
| Carton Height | 8 in / 203.2 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 13.25 in / 336.55 mm |
| Certifications | CE, RoHS, UL2043, UL60065, ETL-C/US |
| Enclosure Properties | ABS, Steel |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |

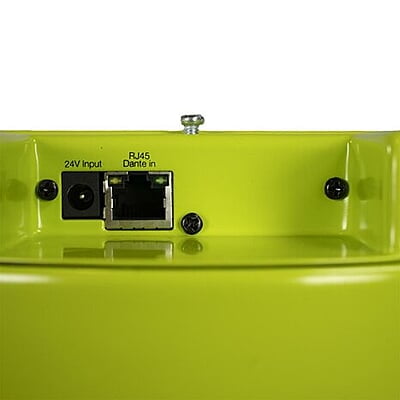

| Source Inputs | RJ45 Ethernet Port |
| IP Rating | IPX3 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 5.75 in / 146.1 mm |
| Crossover Frequency | 4.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 and 5.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.2dB and 7.0dB |
| Frequency Response (± 10 dB) | 50 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 54 Hz - 20 kHz |

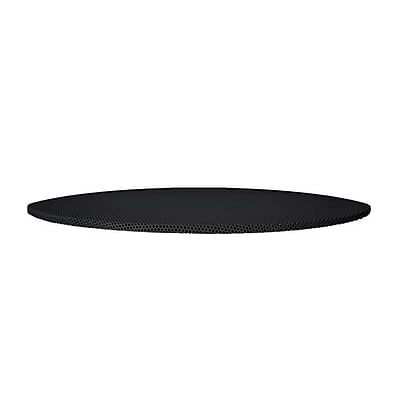

| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Visible Diameter | 298.5 mm |
| Visible Height | 8.6 mm |
