AU-X2IPRO-DA
€210,00 €252,96
Tags:
DANTE 2-CHANNEL INPUT ADAPTER
Model name: AU-X2IPRO-DA
DANTE 2CH PRO INPUT ADAPTER INCL. INPUT SENSITIVITY
The AU-X2IPRO-DA from TiGHT AV effortlessly integrates two channels of analog audio into your Dante network. Utilizing Audinate’s original Dante Ultimo chip, the unit supports sample rates up to 96kHz.

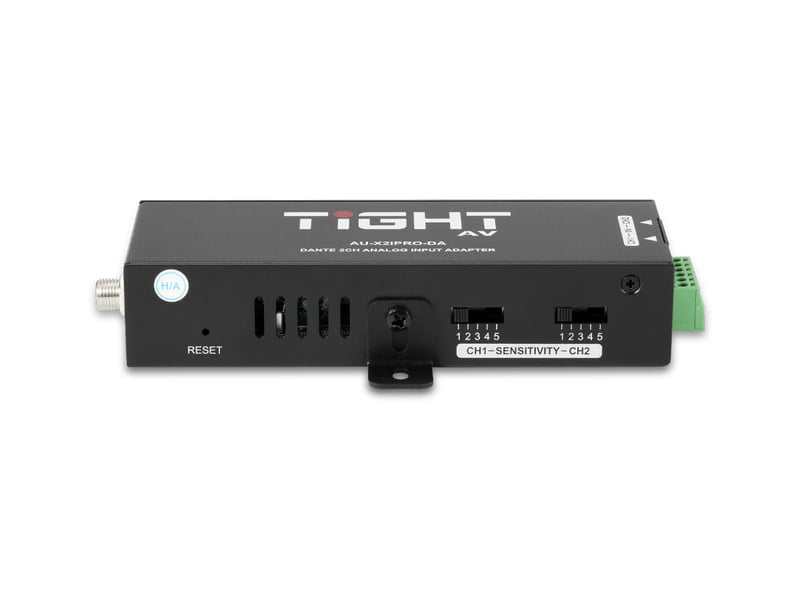

Featuring an installer-friendly interface equipped with phoenix analog connectors, input sensitivity settings via dip switch, a reset button, and a rugged metal housing, the AU-X2IPRO-DA offers simplicity and cost-efficiency. It provides a straightforward solution for seamlessly connecting analog equipment to a Dante network in professional installations.
For simplified setup, PoE support enables easy installation using a PoE-capable network switch or a separate power supply. Additionally, optional Phoenix to XLR cables are available, offering increased connectivity options.
Featuring an installer-friendly interface equipped with phoenix analog connectors, input sensitivity settings via dip switch, a reset button, and a rugged metal housing, the AU-X2IPRO-DA offers simplicity and cost-efficiency. It provides a straightforward solution for seamlessly connecting analog equipment to a Dante network in professional installations.
For simplified setup, PoE support enables easy installation using a PoE-capable network switch or a separate power supply. Additionally, optional Phoenix to XLR cables are available, offering increased connectivity options.
VAT
Not Included Choose Quantity
Product Details
Audio | |
Max input level (balanced) | +24 dBu / +4 dBu / 0 dBu/ 0 dBV /-10 dBV |
Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
Impedance | 7.2k Ohm balanced 3.6k Ohm unbalanced |
Dynamic Range | >100 dB |
Signal to Noise Ratio | >100 dB |
THD | <0.01% @+4 dBu |
| |
Sample Rate | 44.1kHz, 48kHz, 96kHz |
Bit Depth | 24 |
Dante Device Latency | 1, 2 or 5ms (configurable using Dante Controller) |
Network Transport | Dante Audio over IP AES67 RTP |
| |
Operation Temperature | -5 to +55 (+23° to +131°F) |
Storage Temperature | -25 to +70℃ (-13° to +158°F) |
Power | 802.3af PoE or DC12V |
Power Consumption | 2.65W (Max) |
Dimension (W*H*D) | 128 x 26 x 48 mm |
Net Weight | 195g |
Compliance | FCC, CE |
Environmental | RoHS, REACH, WEEE |
