NGSE8H-AV
Non-returnable
€928,00
Tags:
8 port, Gigabit Ethernet Switch, PoE+ (130W), Rear Facing Ports

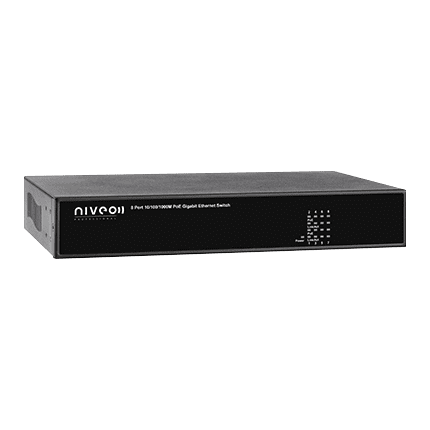

Introduction NGSE8H is a 8-port 10/100/1000M PoE+ Ethernet Switch that is designed for medium or large network environment to strengthen its network connection. Including rack-mount brackets, the 11" size fits into your rack environment. It is a superb choice to boost your network with better performance and efficiency.
Product URL
https://niveoprofessional.com/product/ngse8h-av/ VAT
Not Included Choose Quantity
Product Details
Specifications
IEEE 802.3at Power over Ethernet (PoE) ports
NGSE8H features 8-port PoE IEEE 802.3at supplying up to 30 watt per port. This product can
convert standard 100~240V/AC power into low-voltage DC that runs over existing LAN cable to
power up IEEE 802.3at compliant network accessories. By adding NGSE8H to existing
networking, installing networking products such as Access Points and IP cameras can be easily
managed and set up. Wireless device deployments are easily located with available power
outlets and network administrators don’t need to use heavy AC power adapters anymore.
High-Speed Networking and Jumbo Frames Support
NGSE8H provides an excellent solution for expanding your Gigabit network. By Gigabit speed,
this product provides high flexibility and high bandwidth connectivity to servers, workstations
and other attached devices. It enables you to save time transferring large files. In addition, it also
supports Jumbo Frames 9.6K to improve network utilization of large file transfers.
No Special Networking Cable Required
By adding PoE devices, you can use an existing standard Cat.5/Cat.5e Ethernet cable without a
new electrical outlet for both power and data. It helps you reduce installation time and cost.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables
whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps/
100Mbps/1000Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port
simultaneously supports up to 200Mbps/2000Mbps of bandwidth in full-duplex mode. This
feature provides full wire speed to the connected devices and allows you to run a smooth
network.
Store and Forward
By this function, this switch can maximize network performance while minimizing the
propagation of bad network packets.
Switch Capabilities
- BrandNiveo
- Switch TypeManaged Switches
- AV Multicast PossibleYes
- Number of LAN Ports5-10
- Main Port SpeedGigabit
- Number of Uplink Ports2
- Uplink PortsGigabit SFP
- PoE SupportYes
- Number of PoE Ports8
- PoE StandardPoE+ (802.3at)
- PoE BudgetMedium (100-199W)
- InstallationDesktop/Rackmount
- AVB CapableNo
- SDVOE CertifiedNo
- Direction of ConnectionsRear Facing
- Optimized for AVYes
