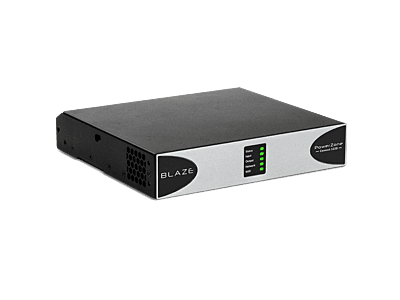

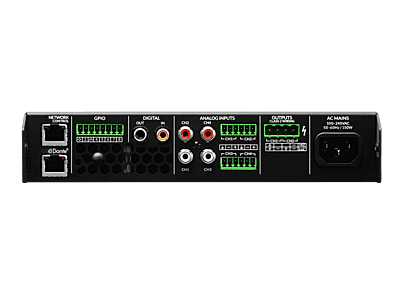

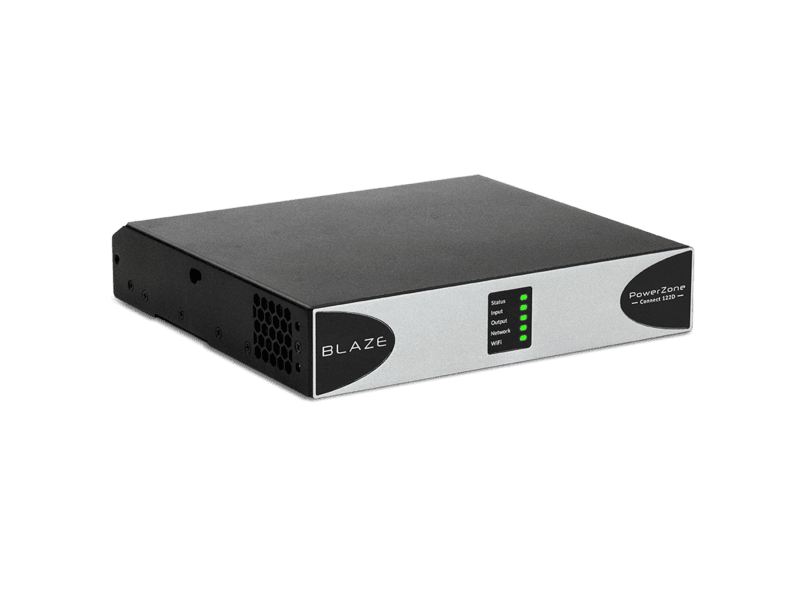

PowerZone™ Connect 122D
PowerZone™ Connect 1U series
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
| Total System Power | 125 W |
|---|---|
| Output Power @ 4/8Ω | 2 x 60 W |
| Output Power @ 70/100V* | 1 x 125 W |
| Powershare (up to) Across all channels** | 1 x 125 W |
| Power Consumption | 75 W |
| Dimensions | 44 x 220 x 213 mm |
| Weight | 2kg, 4.4 lbs |
| Output Circuitry | UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 45Vrms (S.E) – 70/100V (Hi-Z) |
| Signal To Noise-Ratio | > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load) |
| THD+N (typical) | < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power) |
| Frequency Response | 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power) |
| Protection Circuits | Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection |
| Power Supply | UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) |
| Operating Voltage/Frequency. | Universal Mains, 100-240V, 50-60Hz |
Amplifiers
- Audio PrococolDante
- Channels4
