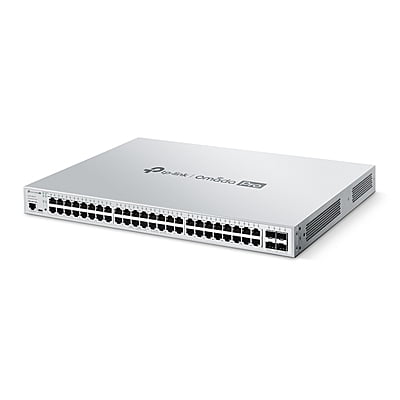

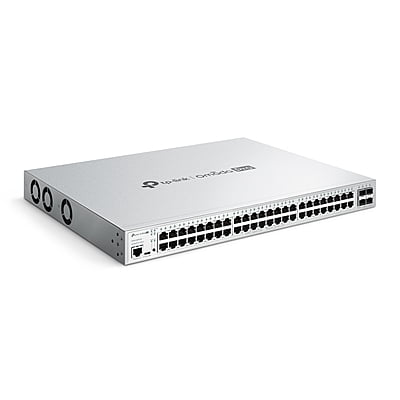

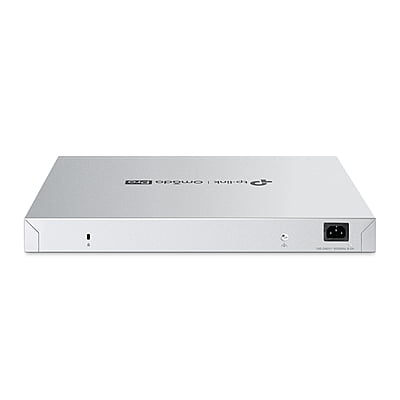

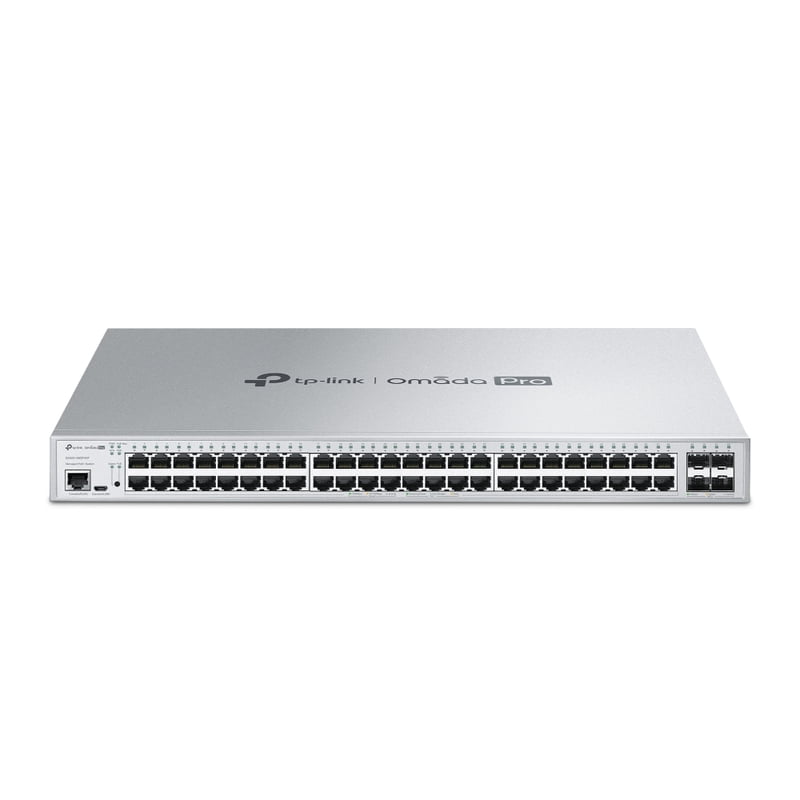

S5500-48GP4XF | Omada Pro Switch
Build and expand your lightning-fast network with Omada Pro S5500-48GP4XF—a fully enterprise-level managed switch with 48× gigabit PoE+ ports and 4× 10G SFP+ ports. Users can supply up to 500 W total power to connected devices and flexibly deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support together with high-performance static routing, enterprise-level QoS, advanced security features and a selection of Layer 2 management options make S5500-48GP4XF a great choice for enterprises, MDUs, hotels, and ISPs.
Layer 2 and Layer 3 features include Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP to meet the needs of ISP customers, while IP-MAC-Port Binding, VLAN Binding, and Access Control List (ACL) functions protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
S5500-48GP4XF
Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots
- Gigabit PoE+ Output with 500 W PoE Budget: 48× gigabit 802.3at/af-compliant PoE+ ports with a total power supply of 500 W.*
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Integrated into Omada Pro: Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and the Omada App.**
- Management Flexibility: Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP.
- Ethernet Ring Protection Switching (ERPS): Blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: ACL, IP-MAC-Port Binding, VLAN Binding, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping.
Switch Capabilities
- BrandTP Link
- Switch TypeSDN Switches
- AV Multicast PossibleYes
- Number of LAN Ports48-52
- Main Port SpeedGigabit
- Number of Uplink Ports4
- Uplink Ports10G SFP+
- PoE SupportYes
- Number of PoE Ports48
- PoE StandardPoE+ (802.3at)
- PoE BudgetHigh (200W+)
- InstallationRackmount
- Layer SupportL2+
- FansStandard
- AVB CapableNo
- SDVOE CertifiedNo
- Direction of ConnectionsFront Facing
- Optimized for AVYes
- CertificationsAll
