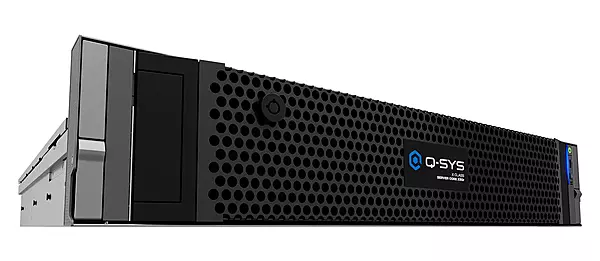

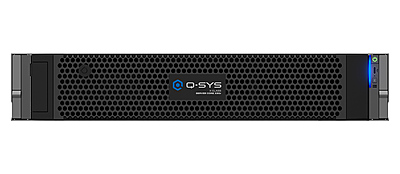

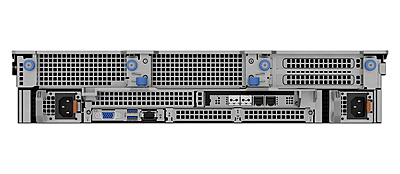

SERVER CORE X50r | Q-SYS network I/O Processor
Features & Benefits
- 4096 x 4096 networked audio channels (with 10 Gbps network connection only—512 x 512 channels @ 1 Gbps)
- 1024 x 1024 network I/O streams @ 10 Gbps (256 x 256 @ 1 Gbps)
- 256x AEC channels @ 200 ms
- Includes 8 x 8 Software-based Dante channels (licensable up to 512 x 512)
- Dual redundant, hot-swappable power supplies
- 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable)
- 256 x 256 Media/WAN channel capacity
- 16 multitrack playback channels (up to 256 with optional stackable feature license)
- 4 multitrack record channels
- Onboard 960 GB media drive
- 2RU form factor
New Class of Q-SYS Processors
Q-SYS X Class Server Cores combine the Q-SYS Full Stack AV Platform with industry-proven IT server hardware to meet the flexibility and scalability demands of the applications from corporate and higher education to hospitality, entertainment and beyond. These Cores are fully networked, making them ideal for running centralized, mission-critical AV services that pair with edge-based network I/O and/or distributed processing.
A Choice for Any Application
Q-SYS Server Core X50r offers 5x the DSP processing power of the Server Core X10 (driven in part by its Dell server hardware) to support 4096 x 4096 network I/O capacity (including up to 512 x 512 Dante network audio capacity) and advanced features like redundant, hot-swappable power supplies to meet the modern demands of the most vital AV applications.
Singular Software Platform
All Q-SYS Cores are driven by the Q-SYS Full Stack AV Platform which delivers a fully integrated audio, video and control solution that offers simpler integration and software-based scalability. All Q-SYS Cores leverage the same, singular software-based foundation that offers unique flexibility to manage any processing topology, from the building or venue-wide AV services to individual collaboration spaces.
