SoundTube IPD-CM52s-BGM-II-WH
SoundTube IPD-CM52s-BGM-II IP-Addressable Speaker with Micro Flange Grille

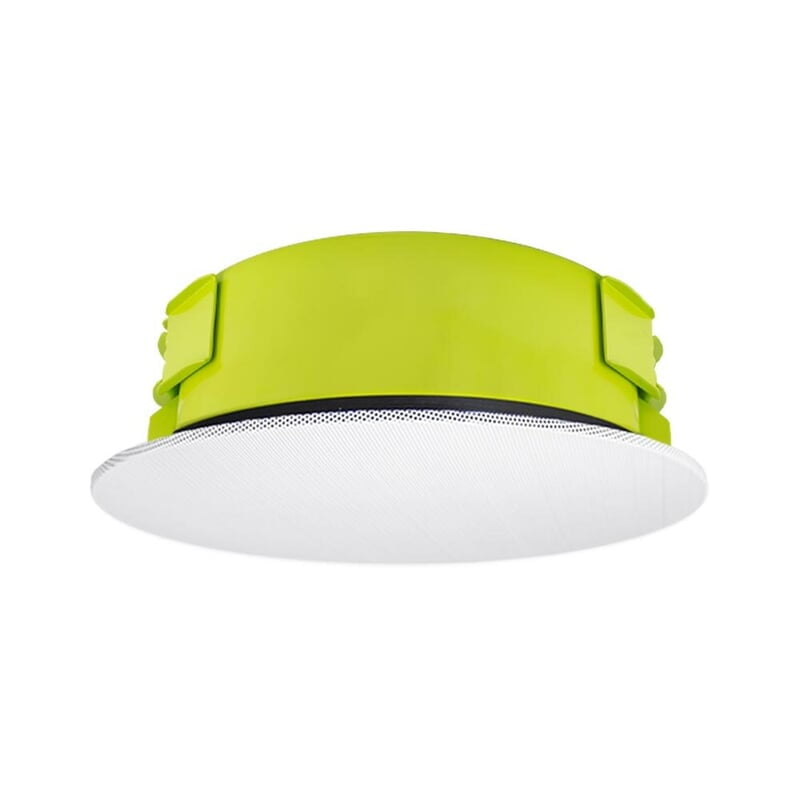

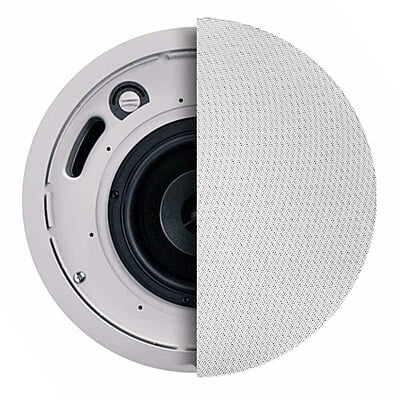

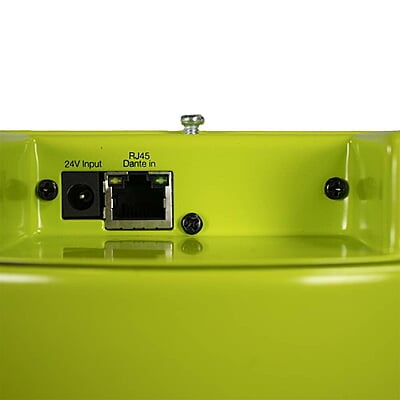

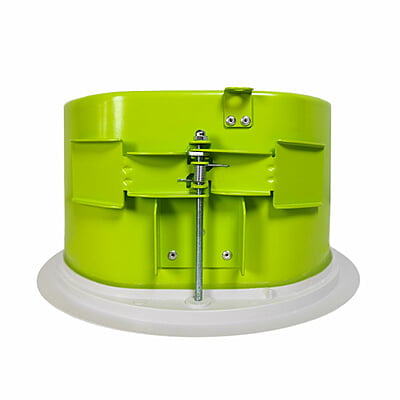

Dante®-enabled coaxial in-ceiling speaker engineered for installation in locations with small plenum space. A 3.5 inch-deep backcan incorporates one 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 65 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 1.6 in (40.6 mm). Color-coded tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Color White UPC 644216226801 Manufacturer SoundTube Manufacturer's Category STNet IP-Addressable and Dante Series Shipping Weight 7.85 lbs / 3.56 kg Carton Height 6 in / 152.4 mm Carton Length 13 in / 31.75 mm Carton Width 13 in / 330.2 mm Certifications CE, RoHS, UL2043, UL60065, ETL-C/US Enclosure Properties ABS, Steel Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask Optional Accessories Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) Source Inputs RJ45 Ethernet Port TAA Compliant (Trade America) No BAA Compliant (Made in USA) No Backcan Diameter 9.67 in / 245.6 mm Backcan Height 3.75 in / 95.3 mm Coverage Angle (±6dB @ 2kHz) 100° Crossover Frequency 5.0 kHz Cutout Width/Diameter 10.5 in / 266.7 mm Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 4.3 and 4.2 Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.7dB and 6.2 dB Frequency Response (± 10 dB) 65 Hz - 22 kHz Frequency Response (± 3 dB) 90 Hz - 20 kHz Grille Properties Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel Low Frequency Voice Coil 1 in / 25.4 mm Low Pass Crossover 12 dB per octave 2nd order Max. Ceiling Thickness 1.6 in / 40.6 mm Max. Continuous Power RMS 20W Max. Program Power 40 W Minimum Ceiling Thickness 0.04 in / 0.9 mm Network Type: High Pass 12 dB per octave 2nd order Tweeter Driver .75" Silk Dome w/ BroadBeam Ring® Woofer Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround Power for Max SPL 40 W Visible Diameter 298.5 mm Visible Height 8.6 mm
| Color | White |
|---|---|
| UPC | 644216226801 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Shipping Weight | 7.85 lbs / 3.56 kg |
| Carton Height | 6 in / 152.4 mm |
| Carton Length | 13 in / 31.75 mm |
| Carton Width | 13 in / 330.2 mm |
| Certifications | CE, RoHS, UL2043, UL60065, ETL-C/US |
| Enclosure Properties | ABS, Steel |
| Included Accessories | Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |
| Source Inputs | RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 3.75 in / 95.3 mm |
| Coverage Angle (±6dB @ 2kHz) | 100° |
| Crossover Frequency | 5.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.3 and 4.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.7dB and 6.2 dB |
| Frequency Response (± 10 dB) | 65 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 90 Hz - 20 kHz |
| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | .75" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Power for Max SPL | 40 W |
| Visible Diameter | 298.5 mm |
| Visible Height | 8.6 mm |
